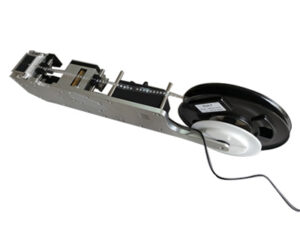

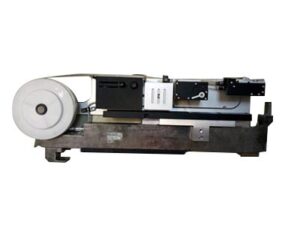

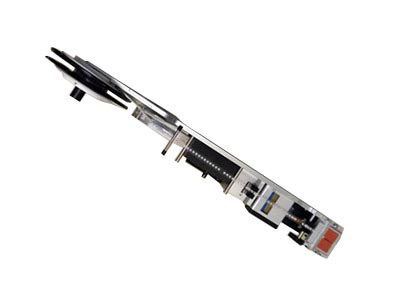

Dobeter Electronics design and manufacture ASM Siplace label feeder, which is a specialized accessory that automates the process of peeling and presenting adhesive labels for pickup by ASM (formerly Siemens) Siplace surface mount technology (SMT) pick-and-place machines. Labels are treated as components, so there is no need for a separate labeling machine, which saves space and reduces assembly costs. This integration significantly improves efficiency and accuracy compared to manual label application in PCB assembly lines.
Benefits
- Saves labor by eliminating manual labeling.
- Ensures precise positioning of labels with micrometer-level accuracy.
- Supports various label materials and sizes, increasing flexibility.
- Can operate independently or as part of a fully automated Panasonic SMT line
Compatibility
Label feeders are available for a wide range of ASM Siplace machine series: X Series, S Series, D Series (D1, D2, D3, D4, D4i), H Series (HF, HS60, HF3), SX Series, E Series.
We provide commonly used label feeders, such as Yamaha label feeder, Samsung label feeder, JUKI label feeder and so on, and we also provide various kinds of standard SMT feeder such as Yamaha SMT feeder, Samsung SMT feeder, JUKI SMT feeder and so on.
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 50 mm,
31 mm to customized one * 85mm , 31 mm to customized one * 100mm |
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 0~45mm , 0~85mm, 0~95mm
customized one |
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |
ASM label feeders are widely used in electronics manufacturing to improve efficiency, accuracy, and productivity in labeling processes while integrating seamlessly with existing SMT equipment.

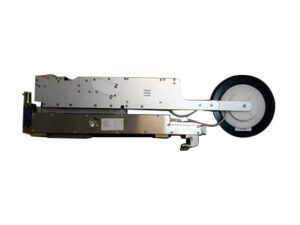

Part Number : DBE-LF-ASM-D

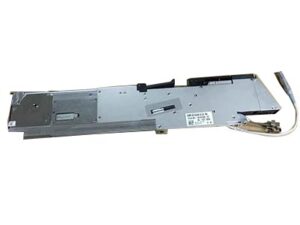

Part Name : ASM Siplace Label Feeder for those SMT pick and palce machines such as D1,D2,D3,D4,D4i, HF,HS60,HF3 D series and H series for those machines using below feeders:

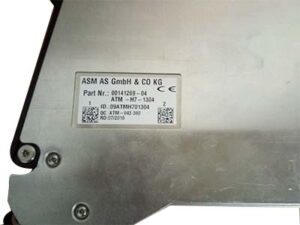

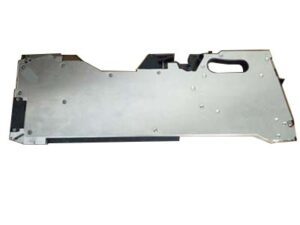

ASM Siplace Label Feeder – X series for those machines using below feeders
