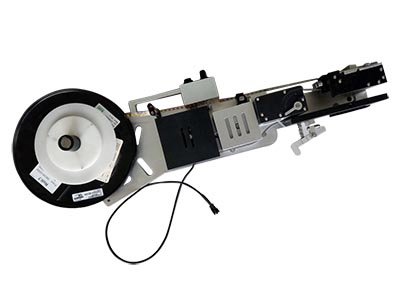

Dobeter Electronics design and manufacture Assembleon label feeder which is a specialized piece of equipment designed to automate the process of applying adhesive labels to printed circuit boards (PCBs) and other electronic components during surface mount technology (SMT) assembly. The feeder peels the labels from their backing and presents them to a pick-and-place machine for accurate and rapid placement.
label feeder features
- Compatibility: Designed to integrate with existing Assembleon SMT pick-and-place machines.
- Increased productivity: Automates the placement of labels, which is significantly faster and more productive than manual placement.
- High accuracy: Provides precise and consistent label placement, which is more reliable than manual application.
- Customizable: Can be customized for different liner widths to handle a range of label sizes, and some versions can present multiple labels at once.

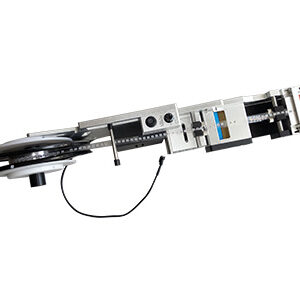

We provide commonly used label feeders, such as Yamaha label feeder, Samsung label feeder, JUKI label feeder and so on, and we also provide various kinds of standard SMT feeder such as Yamaha SMT feeder, Samsung SMT feeder, JUKI SMT feeder and so on.
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 50 mm,
31 mm to customized one * 85mm , 31 mm to customized one * 100mm |
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 0~45mm , 0~85mm, 0~95mm
customized one |
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |

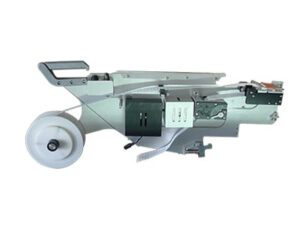

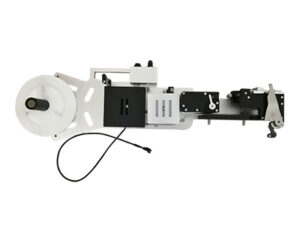

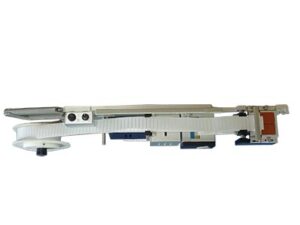

Part Number : DBE-LF-ASB-ELEC

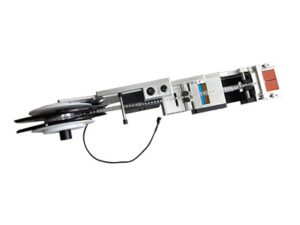

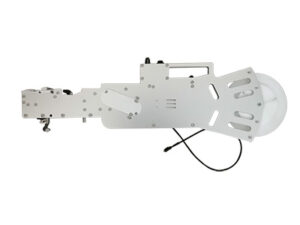

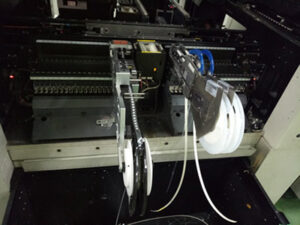

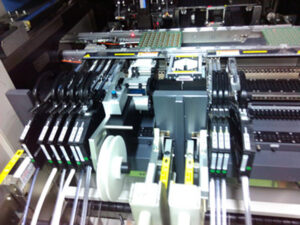

Part Name : Assembleon Label Feeder for those machines using SS, ZS, ZSR motorized feeders such as MC-1,MC-5,MC-8,MC-12 MC-Series and so on.

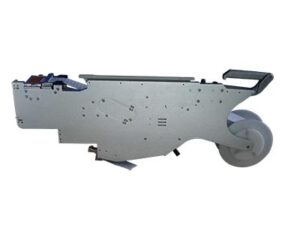

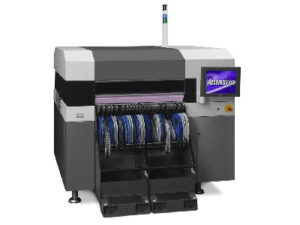

Part Name :Assembleon label Feeder for those machines using CL, FV type pneumatic feeders such as Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2, EMERALD,EMERALD X, EMERALD X II,SAPPHIRE , COMET, Opal and so on and so on.
Part Name : for AX-201, AX-301 & AX-501 SMT machines:
