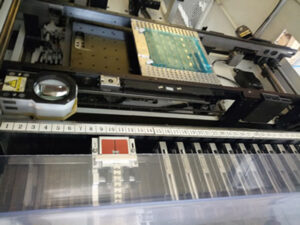

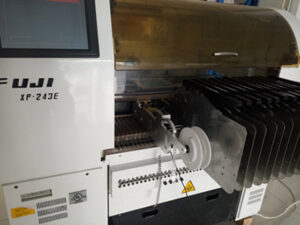

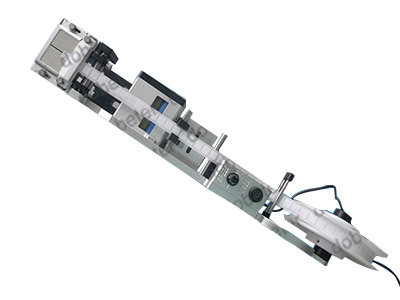

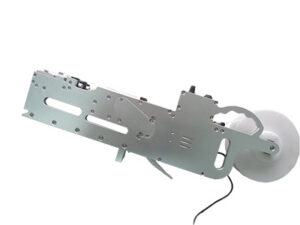

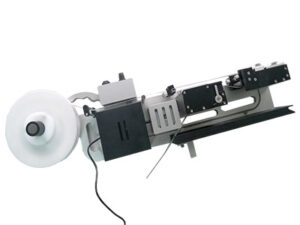

Dobeter Electronics’s Fuji label feeders are designed to automate the process of peeling adhesive labels from their backing liner and presenting them in a precise location for the Fuji pick-and-place machine’s vacuum nozzle to pick up and place onto a printed circuit board (PCB). These Fuji label feeders are applied to those Fuji SMT machines such as XP141,XP142, XP143, QP132, QP242,QP341 and so on.
We provide commonly used label feeders, such as Yamaha label feeder, Samsung label feeder, JUKI label feeder and so on, and we also provide various kinds of standard SMT feeder such as Yamaha SMT feeder, Samsung SMT feeder, JUKI SMT feeder and so on.
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 50 mm,
31 mm to customized one * 85mm , 31 mm to customized one * 100mm |
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 0~45mm , 0~85mm, 0~95mm
customized one |
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |
We design and manufacture custom Fuji nozzles for various kinds of labels, please send us datasheet or specification or samples of your label also we supply standard SMT nozzle for Fuji and other SMT pick and place machines such as Assembleon, JUKI, Samsung, i-Pulse, Panasonic and so on .
