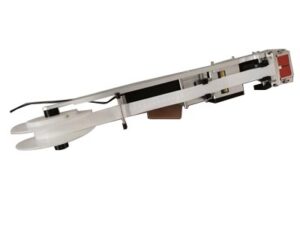

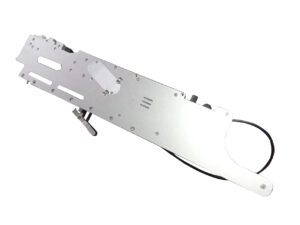

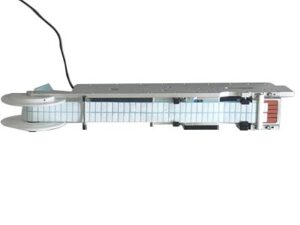

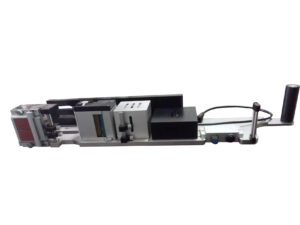

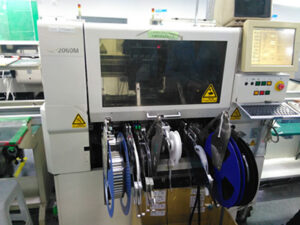

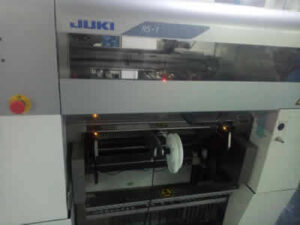

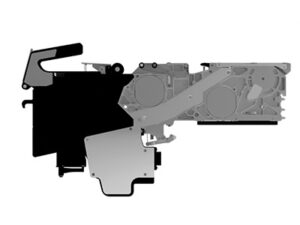

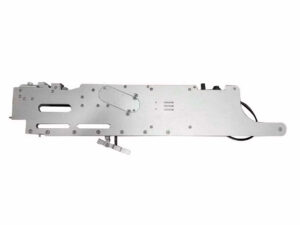

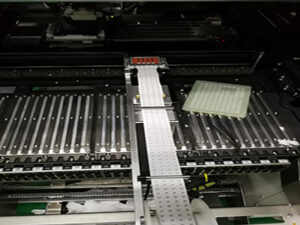

Dobeter Electronics design and manufacture Juki label feeder , which is designed to work with SMT pick-and-place machines by JUKI, allowing adhesive labels (rather than standard component tapes) to be automatically fed, peeled and presented for the placement head. It fits into the machine much like a regular feeder lane, so you don’t need a totally separate machine for label placement — it integrates directly with existing JUKI SMT pick-and-place machines, eliminating the need for a separate labeling station or manual labor..
Our Juki label feeder supports a variety of label widths (50mm, 85mm, 100mm or customizable) and can handle different label materials (paper, plastic, copper, etc) with certain thickness ranges.

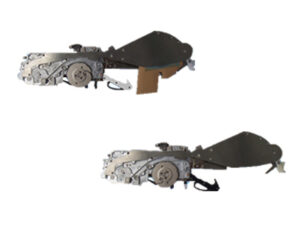

We provide commonly used label feeders, such as Yamaha label feeder, Samsung label feeder, ASM Siplace label feeder and so on, and we also provide various kinds of standard SMT feeder such as Yamaha SMT feeder, Samsung SMT feeder, JUKI SMT feeder and so on.
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 50 mm,
31 mm to customized one * 85mm , 31 mm to customized one * 100mm |
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 0~45mm , 0~85mm, 0~95mm
customized one |
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |
Part Number : DBE-LF-JK-NM
Part Name : JUKI Label Feeder for those machines using pneumatic feeders
Part Number : DBE-LF-JK-EF
Part Name : JUKI Label Feeder for those machines using EF feeders
Part Number : DBE-LF-JK-RF
Part Name : JUKI Label Feeder for those machines using RF feeders such as
RS-1R, RX-6, RX-7, FX-3RA, KE-3010A, KE-3020VA / KE-3020VRA and so on.
