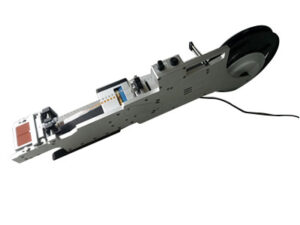

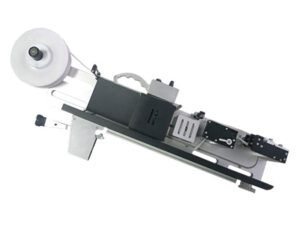

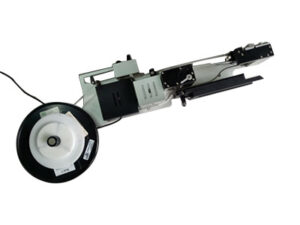

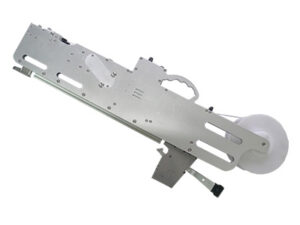

Dobeter Electronics design and manufacture Panasonic label feeder is a specialized feeder unit that presents adhesive labels (or label-type media) in a format that a pick-and-place (P&P) head can pick and place—as if the label were a component tape.
Features of Panasonic label feeders
• Automatic placement: Panasonic label feeders work with your existing pick-and-place machine, which treats the label the same as any other component.
• Compatibility: They can be used with many Panasonic SMT machines, including older models like the CM series and newer NPM models.
• Customization: We offer options for different liner widths to accommodate various label sizes. For example, some feeders are available with 50mm, 85mm, and 100mm liner widths.
• Efficiency: Our designs, feature an adsorption design to prevent labels from sticking and improve accuracy. This reduces material deformation and ensures stable, reliable feeding.
• Precision: Our designs incorporate high-precision motors and anti-vibration features to improve placement accuracy.
• Versatility: Depending on the model, label feeders can accommodate various label sizes, with some supporting widths ranging from 2mm up to 95mm. Some models also handle multiple labels per feed.

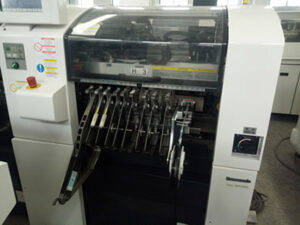

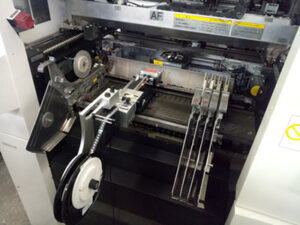

In the case of Panasonic machines, the label feeder needs to match certain models (e.g., NPM series, CM402, CM602, etc.)
We provide commonly used label feeders, such as Yamaha label feeder, Samsung label feeder, JUKI label feeder and so on, and we also provide various kinds of standard SMT feeder such as Yamaha SMT feeder, Samsung SMT feeder, JUKI SMT feeder and so on.
| Specification | Minimum | Maximum |
| Media Size | 2 mm x 2 mm | 31 mm to customized one * 45 mm, |
| 31 mm to customized one * 80 , | ||
| 31 mm to customized one * 95mm | ||
| Media Thickness | 0.05 | 1 |
| Liner Width | 1 | 0~45mm , 0~85mm, 0~95mm |
| customized one | ||
| Liner Thickness | 0.05 | 1 |
| Feed Rate | 0 mm / sec | 95 mm / sec |
Part Number : DBE-LF-PSN-NPM
Part Name : Panasonic Label Feeder for NPM series machines NPM, CM602, CM402…
Part Number : DBE-LF-PSN-CM
Part Name : Panasonic Label Feeder for CM series machines CM202,CM301 and so on .
<div “>

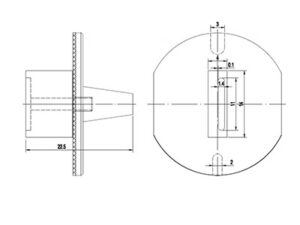

We design and manufacture custom Panasonic custom nozzles for various kinds of labels, also we supply standard SMT nozzle for Panasonic SMT machines .
